The XHM Handle Applicator

A series of images of XHM handle machine applicator: simple design, wiring taken care with maximum alert, mechanical parts easy to removable, first choice materials such as the use of aeronautical aluminium, very thick anodized aluminium head...

  • all
  • System
  • Head
  • HMI
  • Details
View of the application head of the XHM Mechanical Handle Applicator

Head Application of XHM

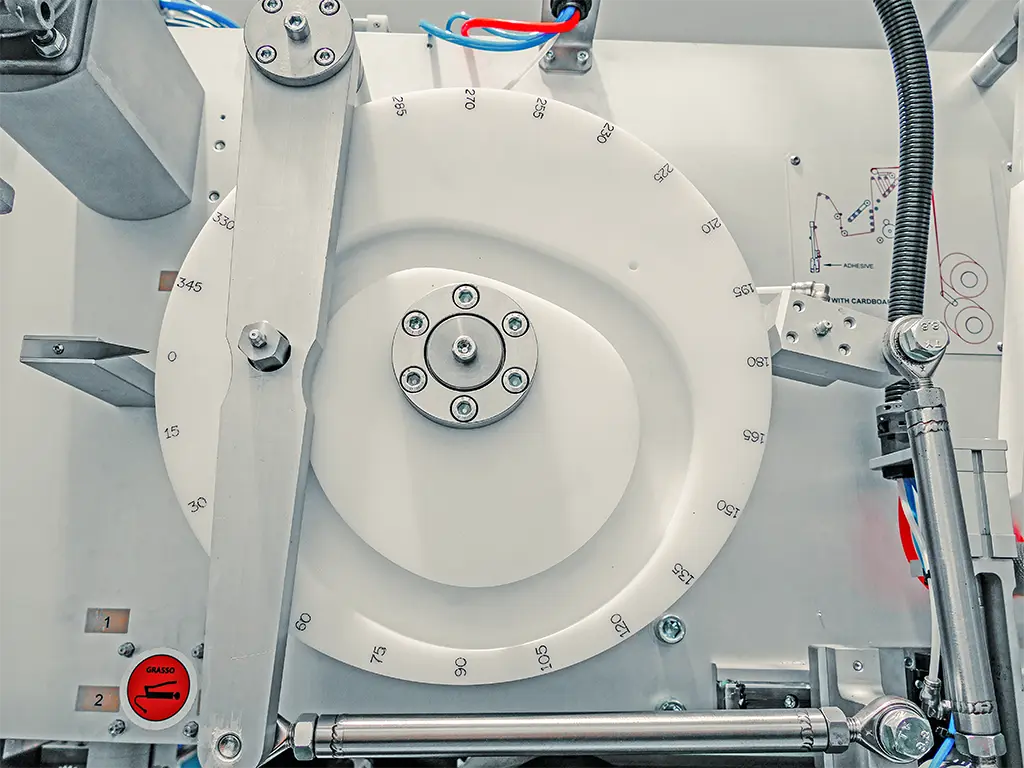

XHM mechanical handle applicator arm movement cam mechanism

Cam mechanism

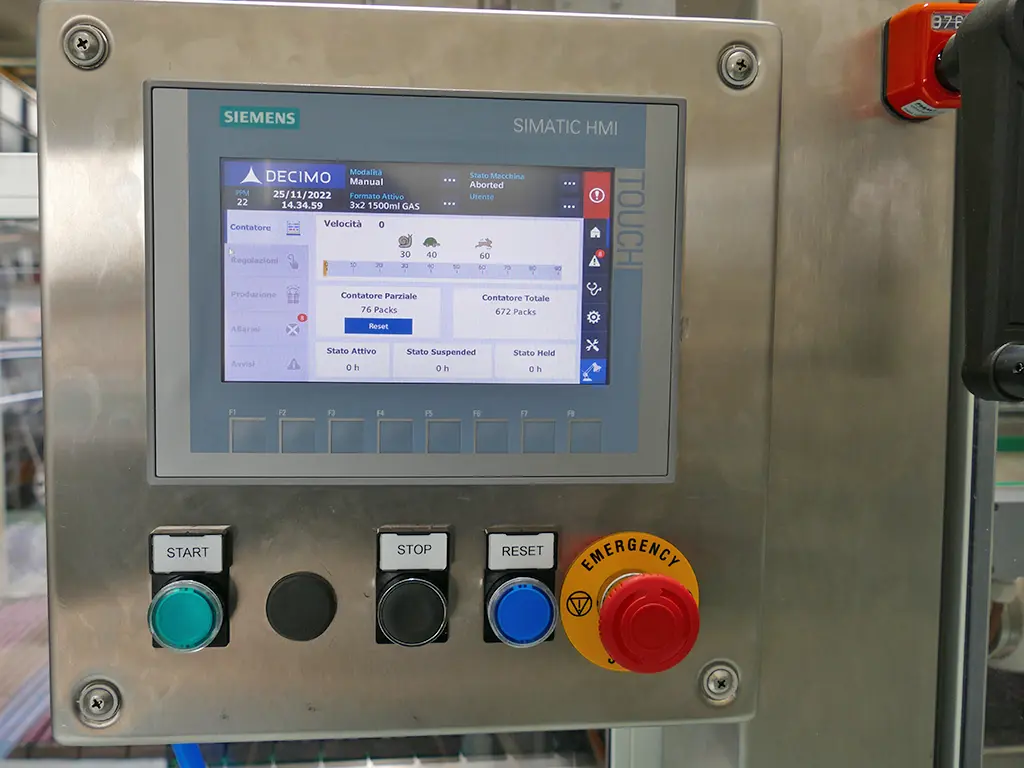

Display of the XHM mechanical handle applicator

Human Machine Interface

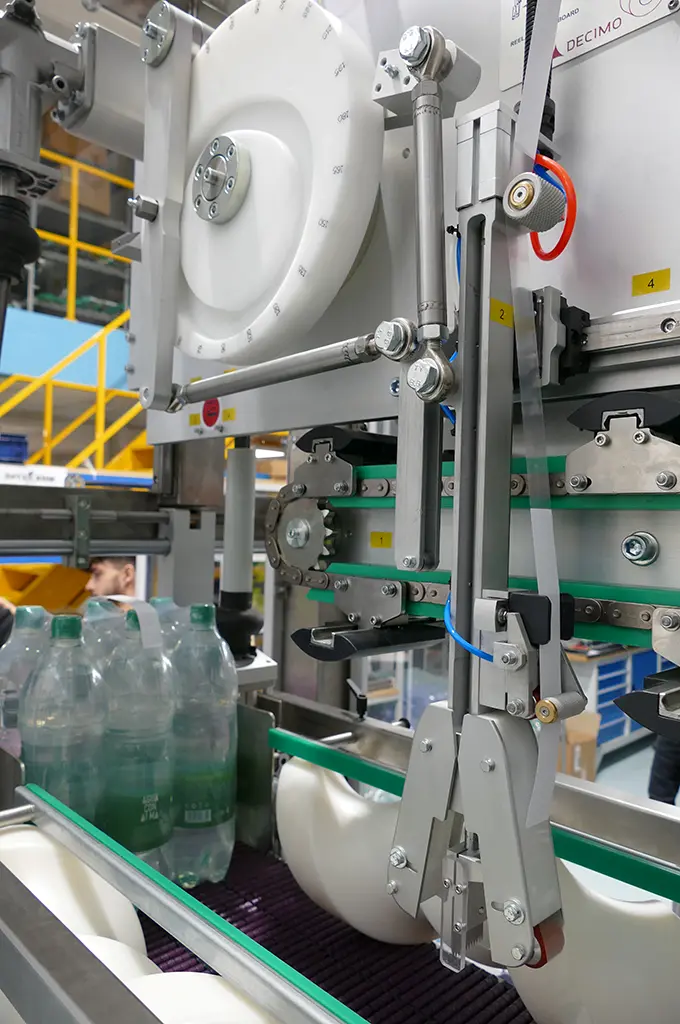

Handle application arm of the XHM mechanical handle applicator

Handle application arm

Label feeding device

Label feeding device

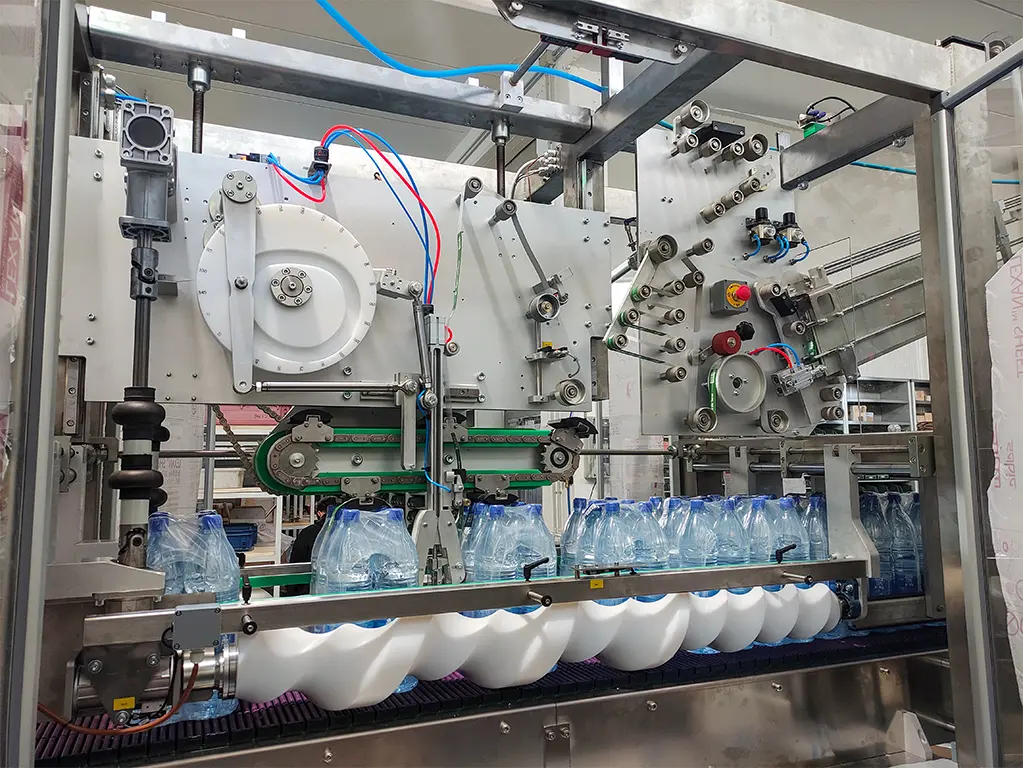

Global view of the XHM mechanical handle applicator

Global view

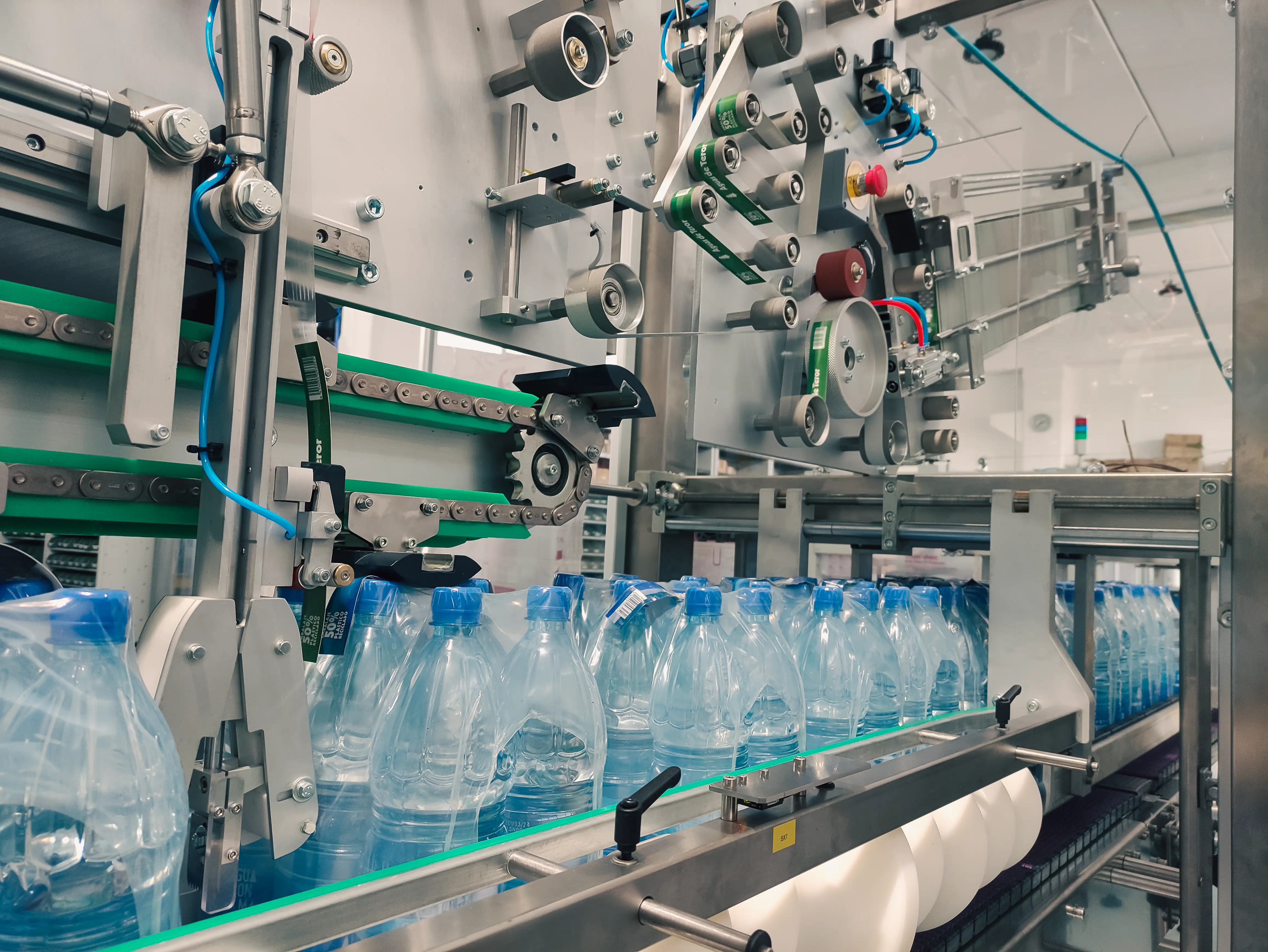

Internal view of the XHM mechanical handle applicator

Internal view

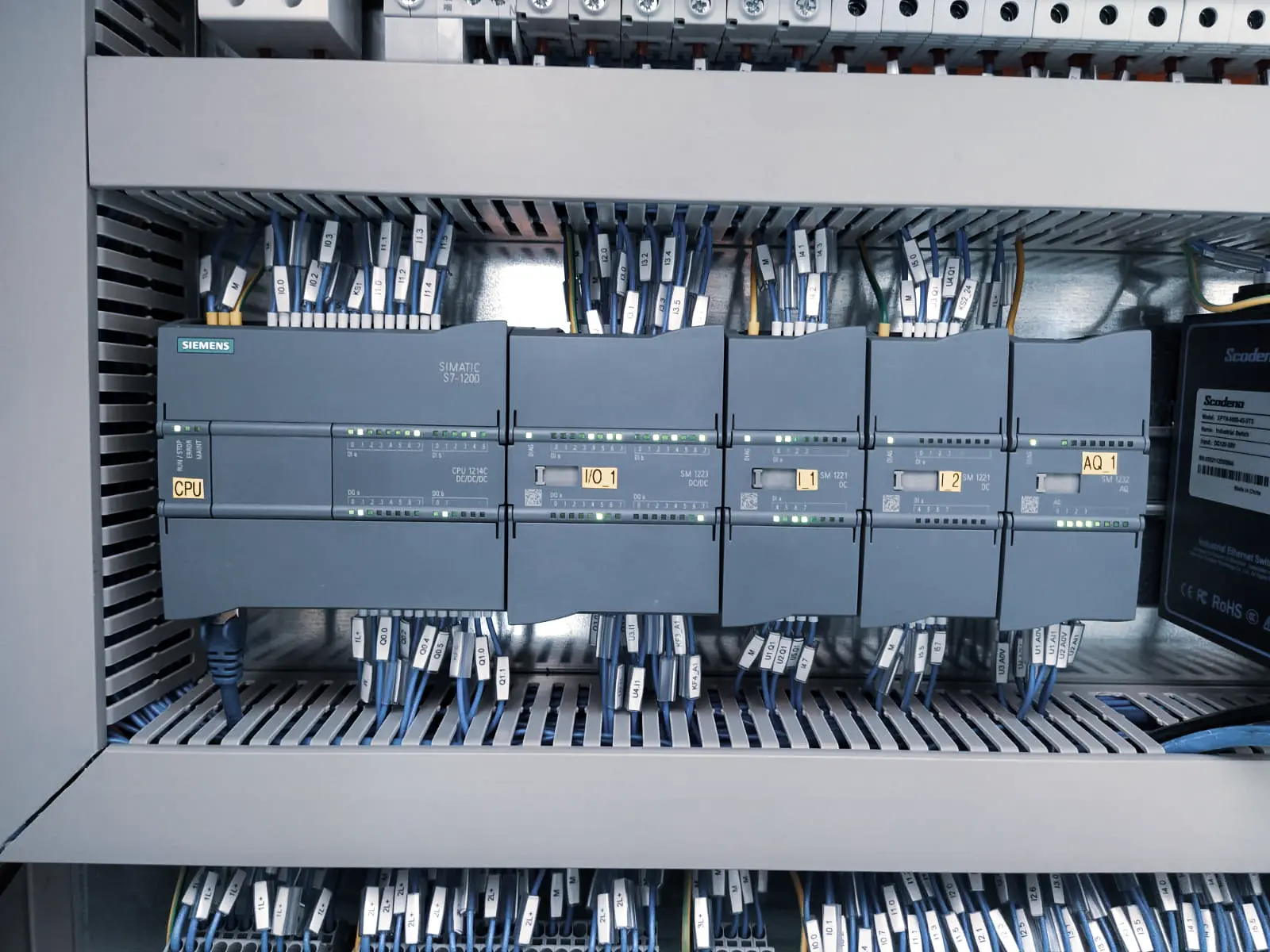

XHM mechanical handle applicator control system

Control system

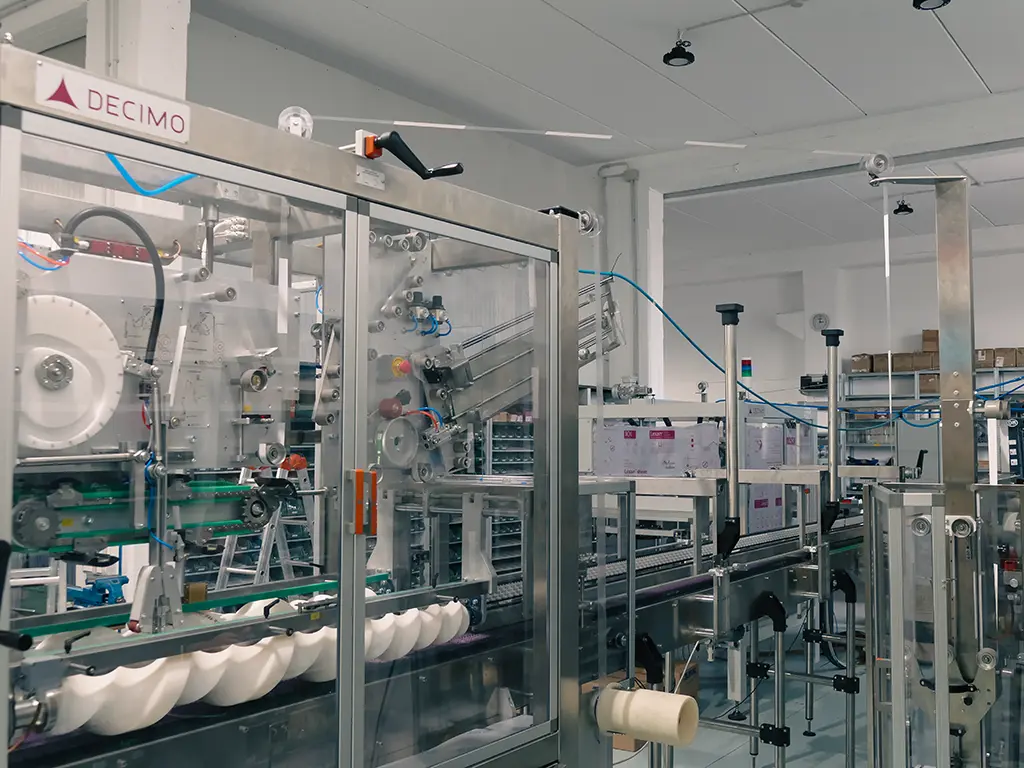

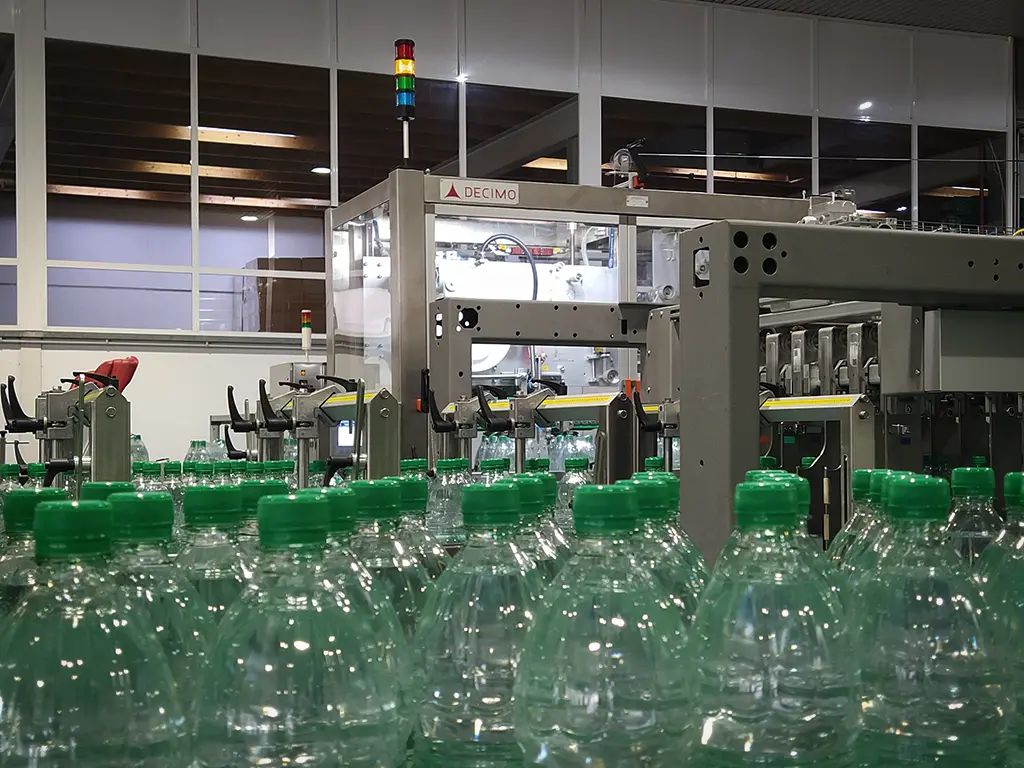

Far view of XHM mechanical handle applicator in bottling lane

XHM in lane

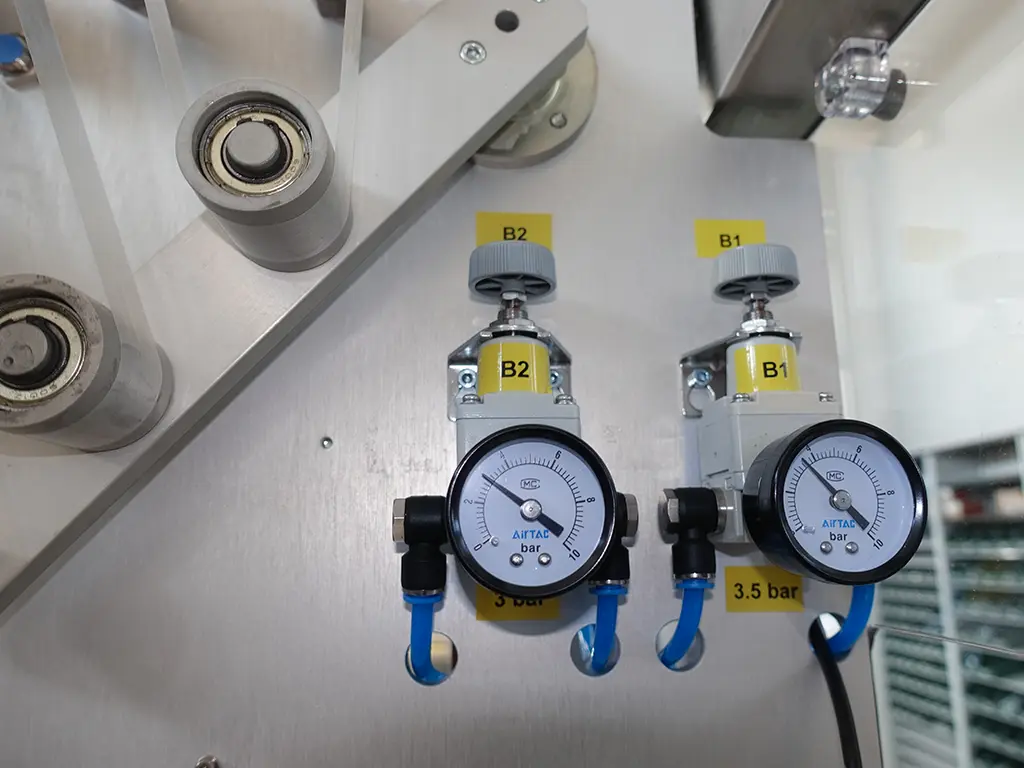

Pressure regulators on the application head of the XHM mechanical handle applicator

Pressure regulators

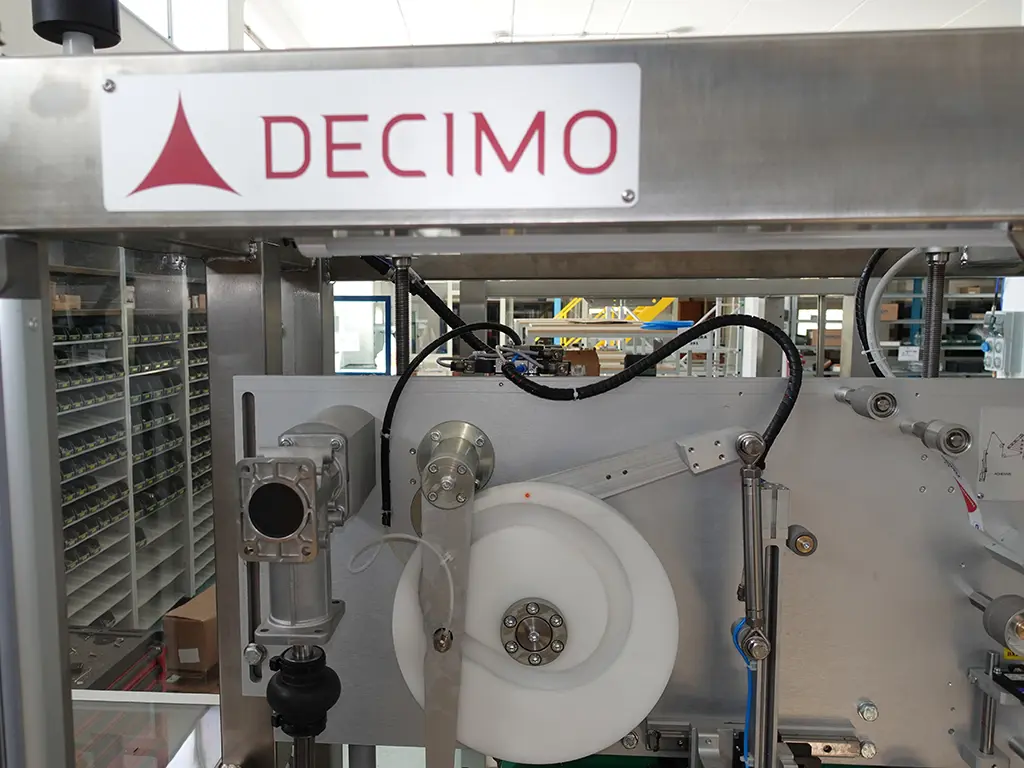

Decimo brand plaque

Plaque Decimo

XHM in action

Siemens S7-1200 platform

A powerful and robust automation platform, featuring a new controller (S7-1200) that integrates motion, logic, safety, networking and visual inspection, new software (TIA-Portal) that includes configuration, programming, simulation and monitoring, and an extremely fast machine network (ProfiNet) for controlling motion, vision, sensors and actuators.

  • A single control for the entire machine or production cell.
  • The integrated PROFINET interface ensures easy communication both with additional automation components and with the TIA Portal engineering platform.
  • A single software to control and configure the entire machine with a single connection offers the power and efficiency to enable unprecedented development and implementation operations.
Read More...
