The XHP Handle Applicator

A series of images of XHP handle applicator machine: simple design, wiring taken care with maximum alert, mechanical parts easy to removable, first choice materials such as the use of aeronautical aluminium, very thick anodized aluminium head...

  • all
  • System
  • Head
  • HMI
  • Details
  • Installation

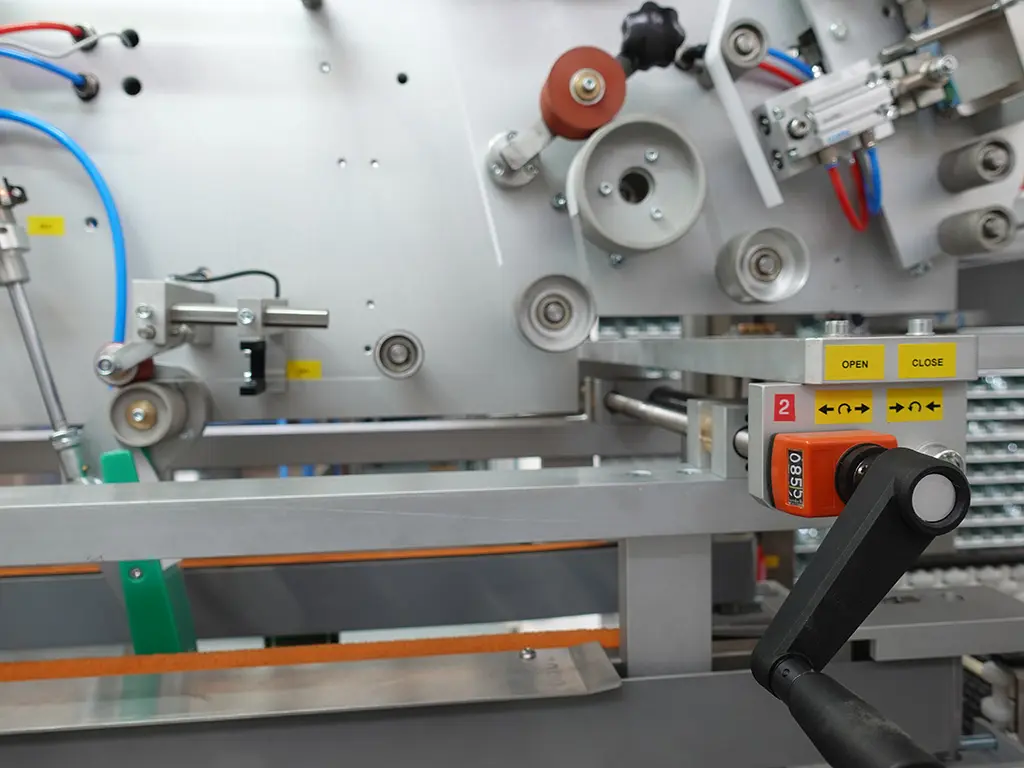

Adjusting handle with position indicator of the lateral belts of the XHP Pneumatic Handle Applicator

Side belts adjustment

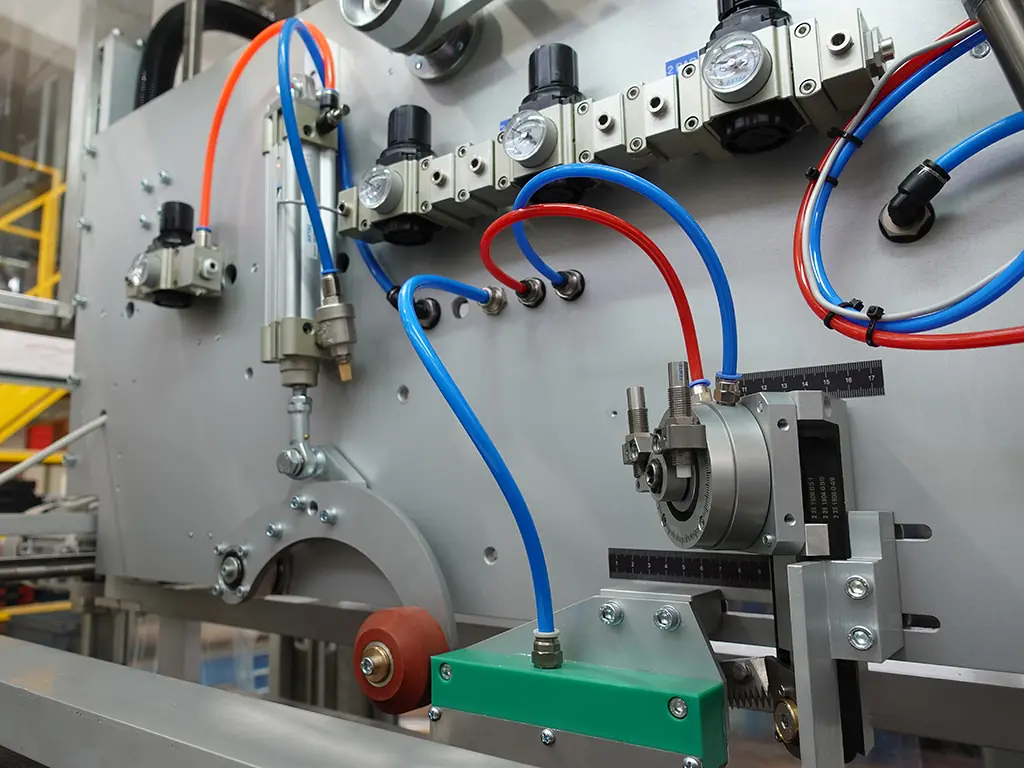

Application head of the XHP Pneumatic Handle Applicator

Handle application head

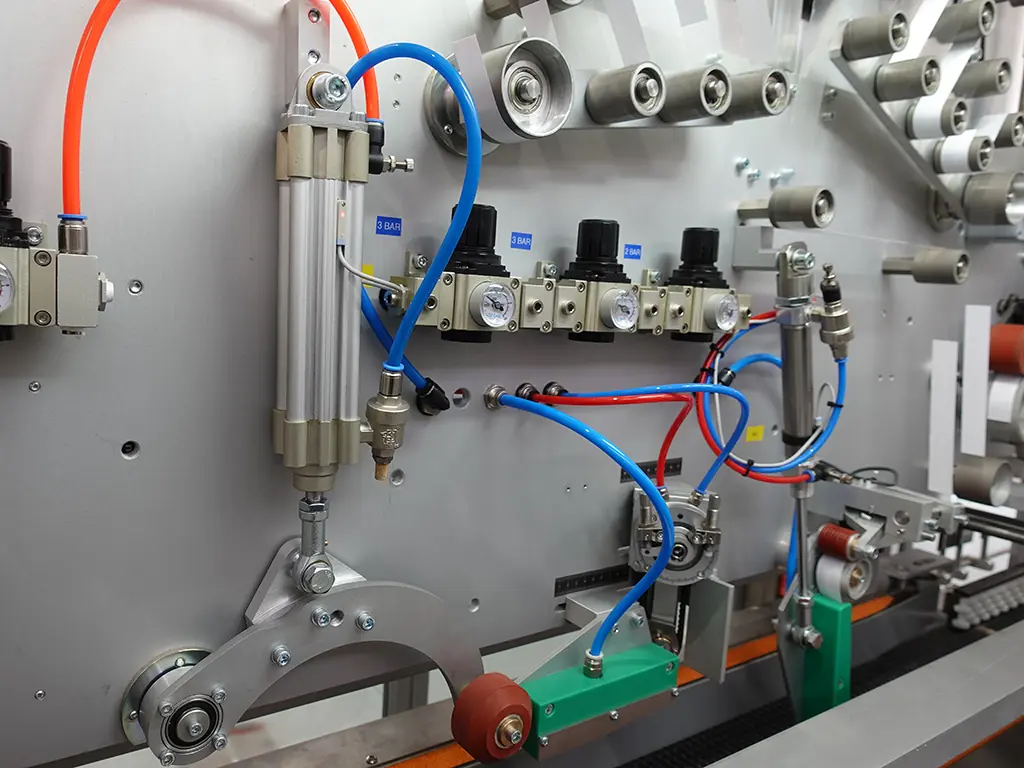

Handle application arms of the XHP Pneumatic Handle Applicator

Handle application arms

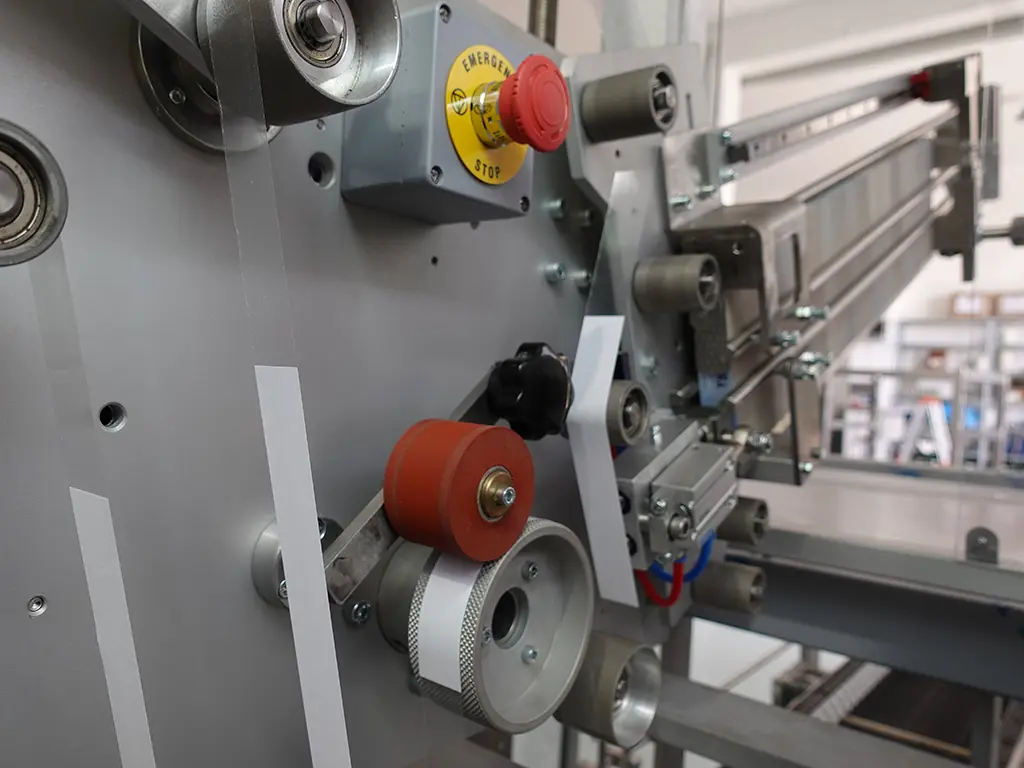

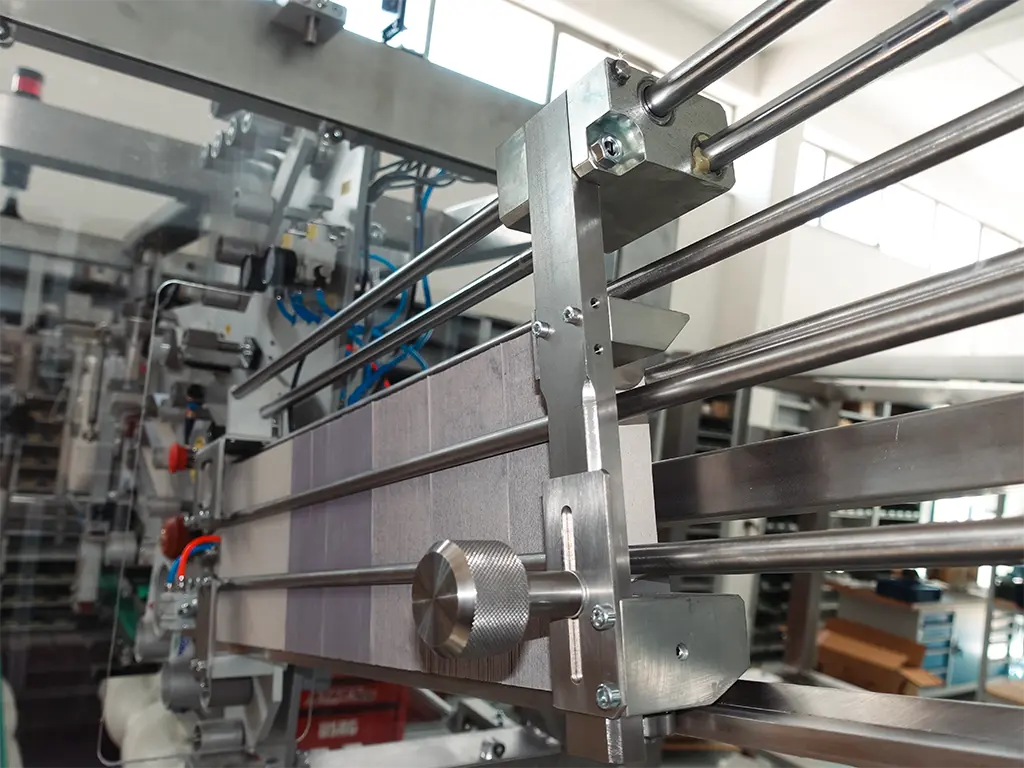

Handle feeding unit of the XHP Pneumatic Handle Applicator

Handle feeding unit

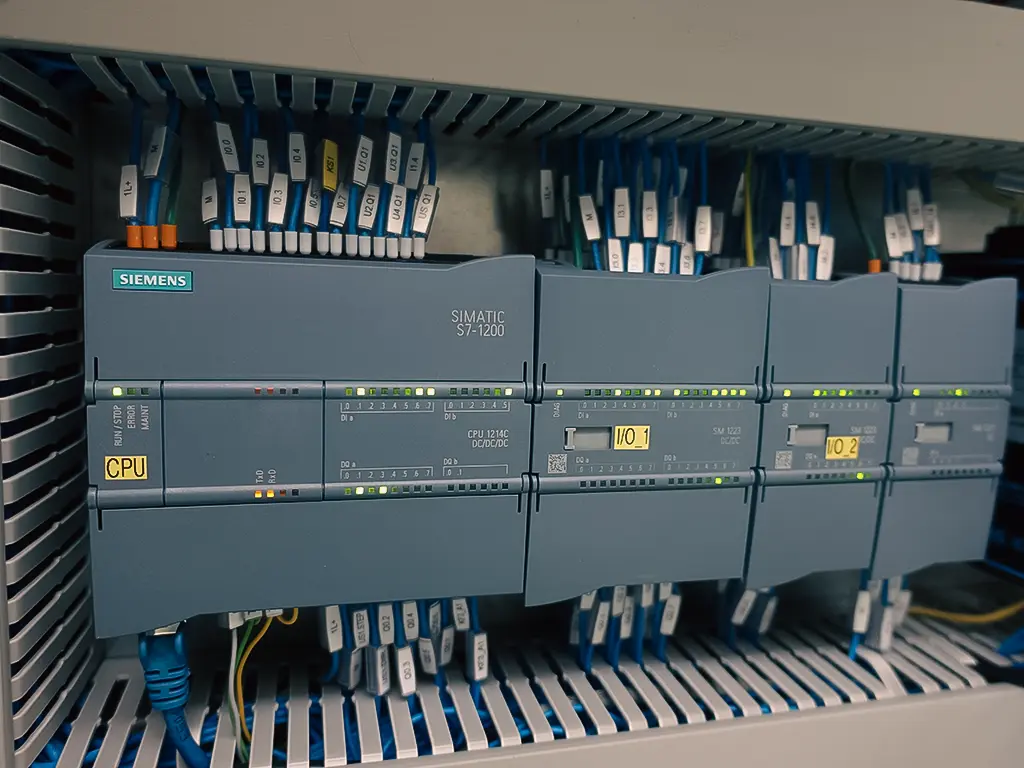

PLC of the XHP Pneumatic Handle Applicator

PLC

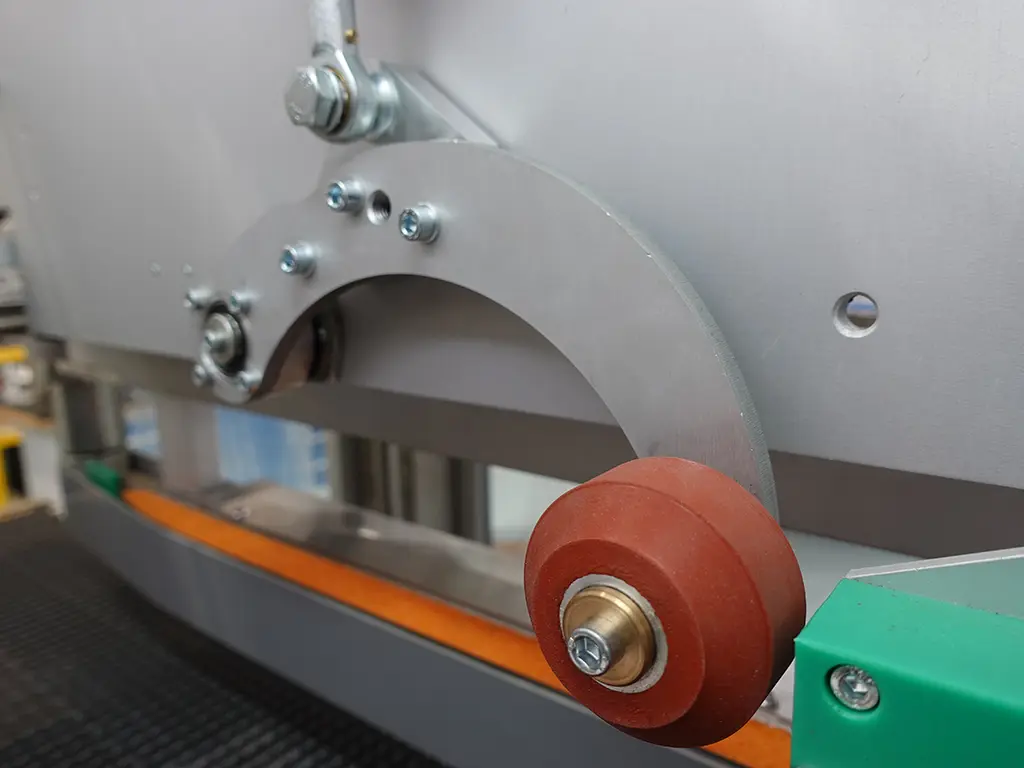

Rear handle application arm of the XHP Pneumatic Handle Applicator

Rear arm

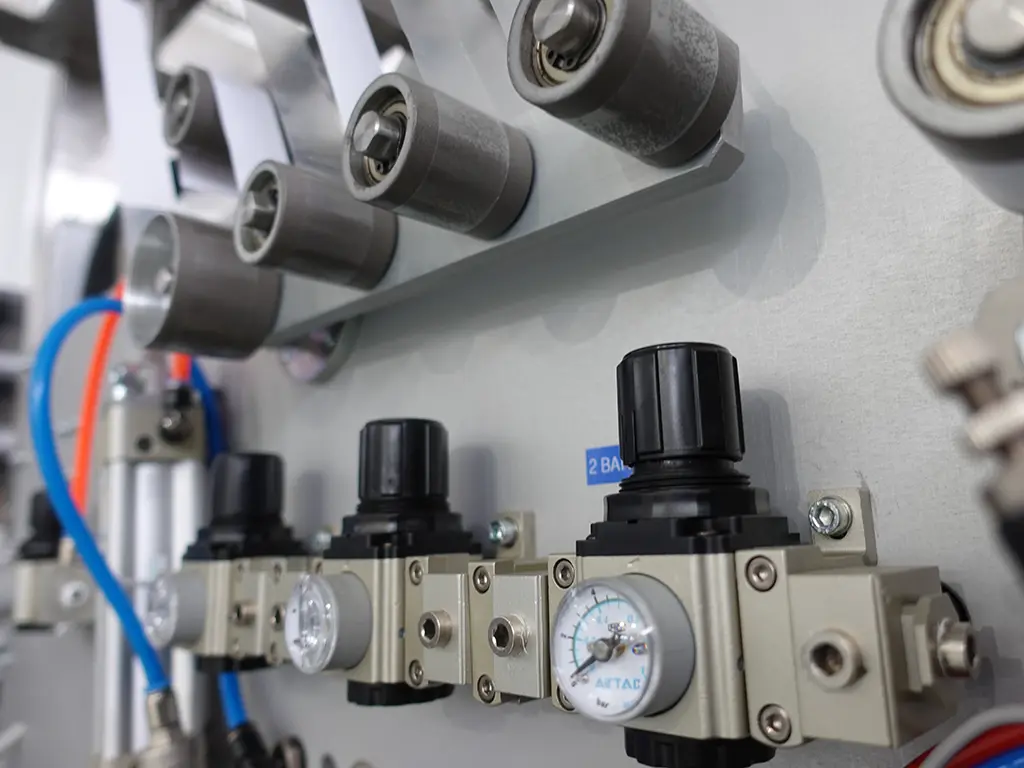

Cylinder pressure regulators of the XHP Pneumatic Handle Applicator

Pressure regulators

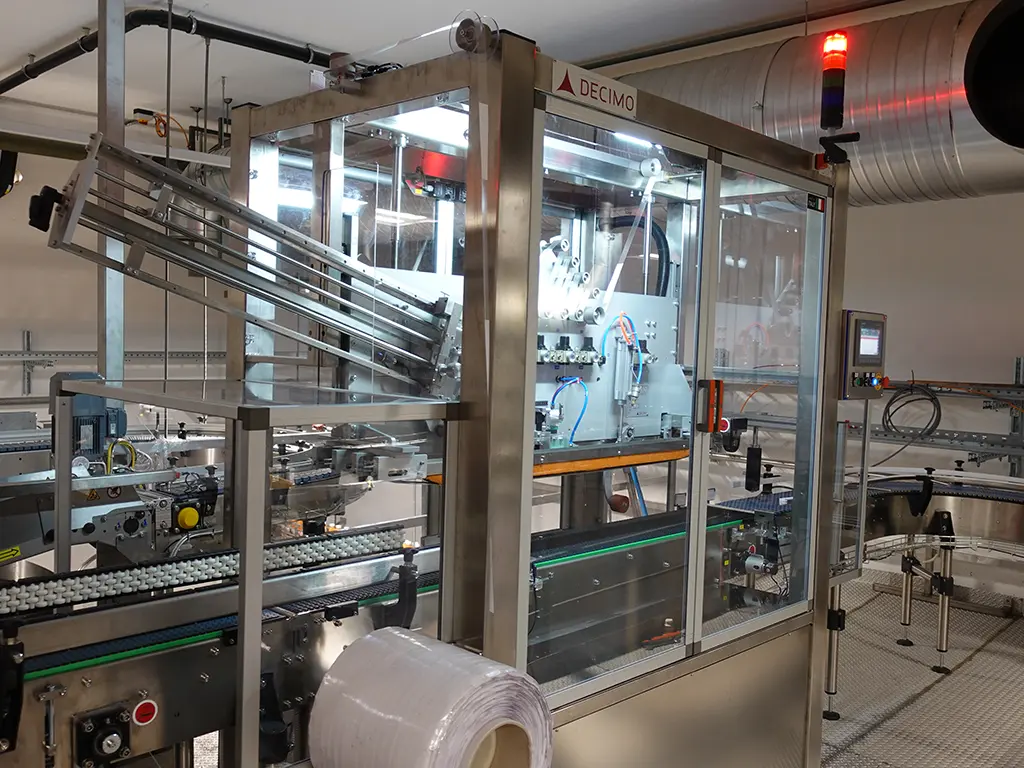

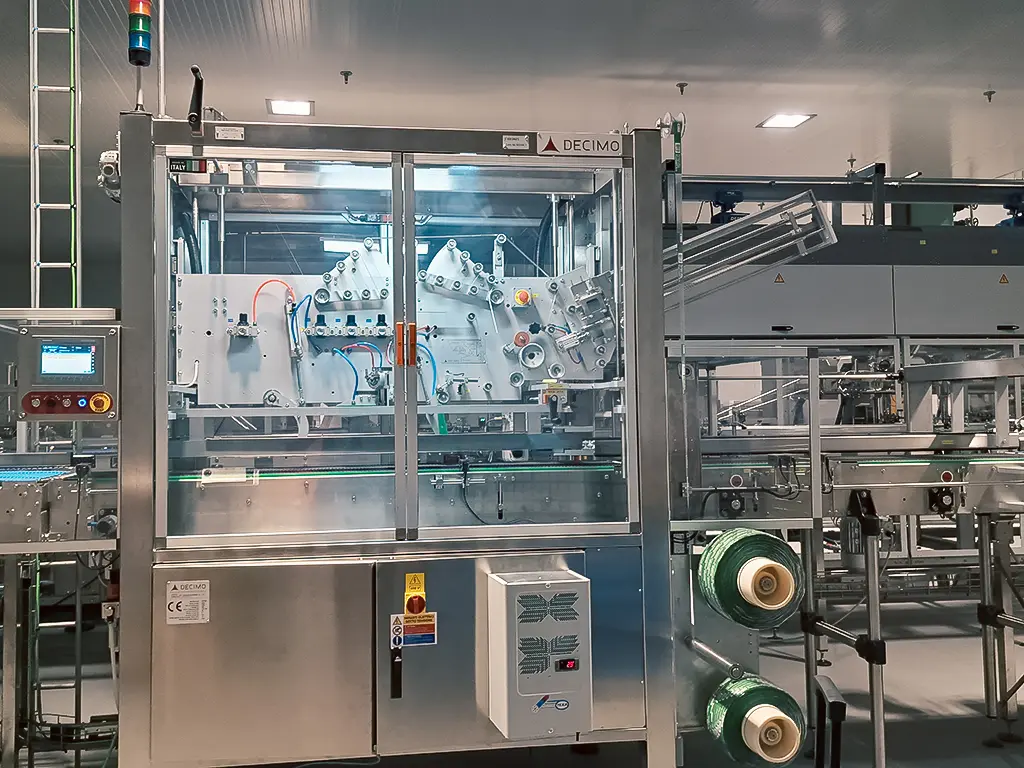

View of the XHP Pneumatic Handle Applicator in the bottling line

XHP in line

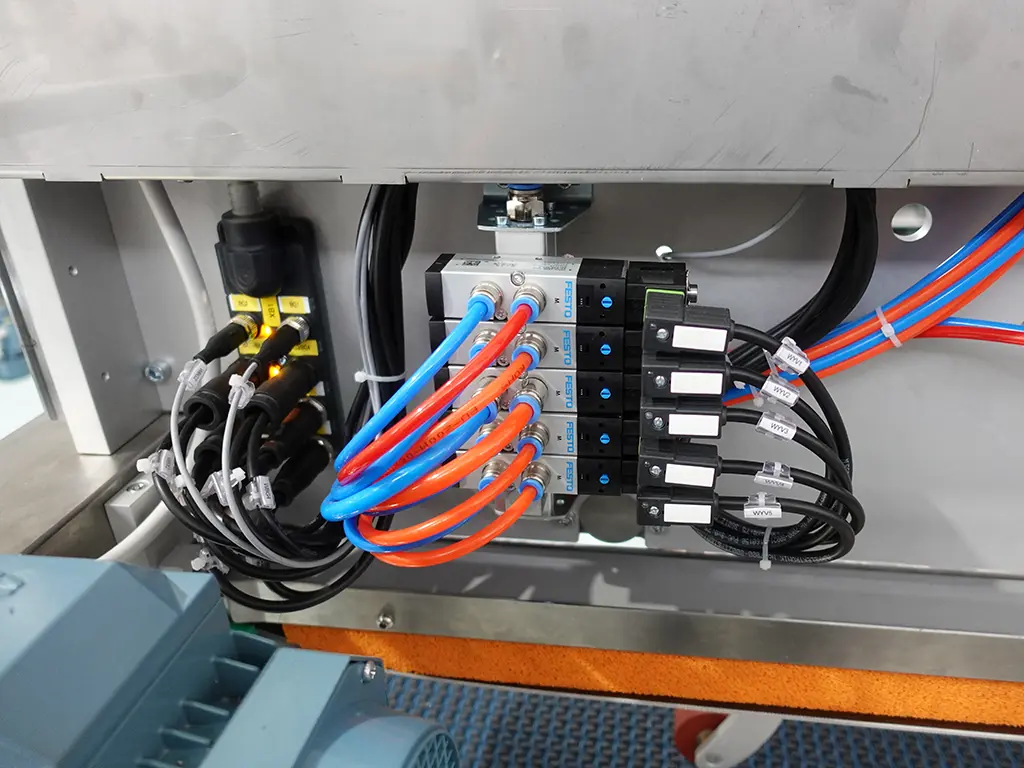

Battery of solenoid valves of the XHP Pneumatic Handle Applicator

Battery of solenoid valves

View of the entry of the XHP Pneumatic Handle Applicator into the bottling line

XHP in line

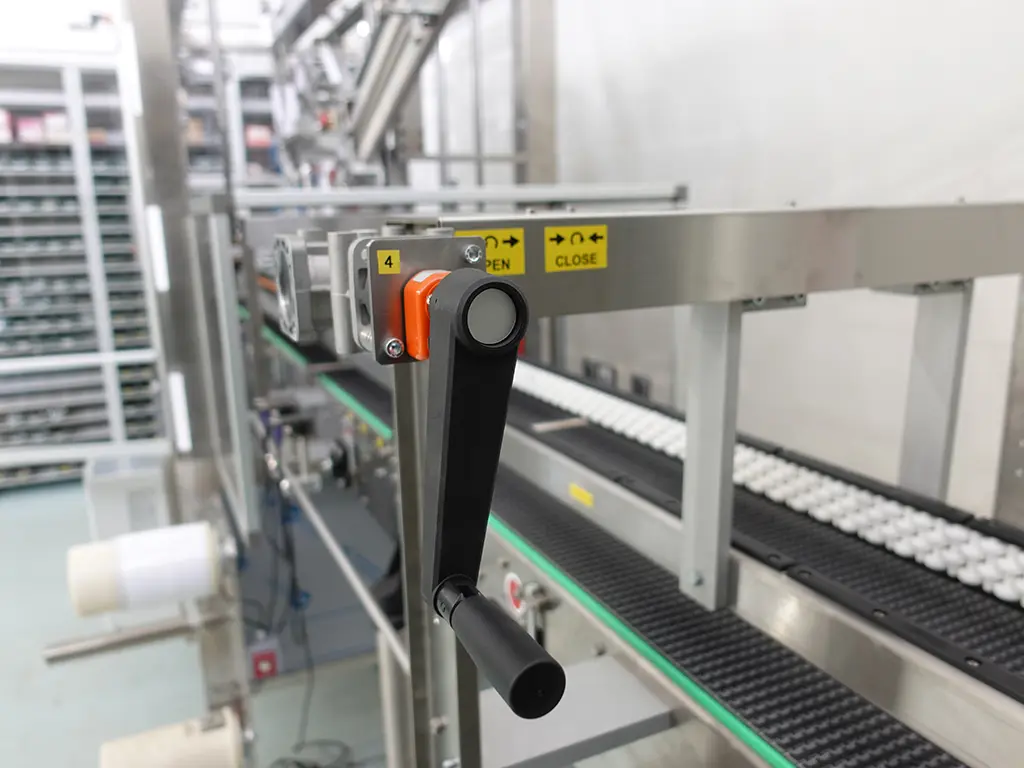

Adjustment crank with position indicator of the side guides of the XHP Pneumatic Handle Applicator

Side guide adjustments

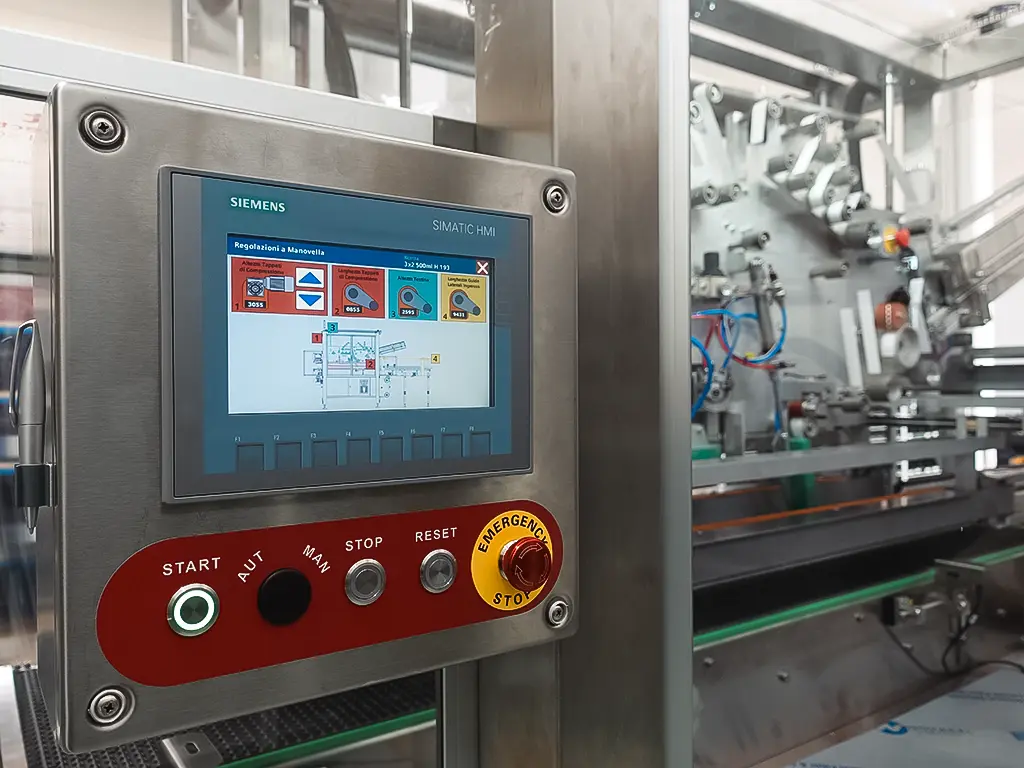

XHP Pneumatic Handle Applicator control panel

HMI

XHP in action

Siemens S7-1200 platform

A powerful and robust automation platform, featuring a new controller (S7-1200) that integrates motion, logic, safety, networking and visual inspection, new software (TIA-Portal) that includes configuration, programming, simulation and monitoring, and an extremely fast machine network (ProfiNet) for controlling motion, vision, sensors and actuators.

  • A single control for the entire machine or production cell.
  • The integrated PROFINET interface ensures easy communication both with additional automation components and with the TIA Portal engineering platform.
  • A single software to control and configure the entire machine with a single connection offers the power and efficiency to enable unprecedented development and implementation operations.
Read More...
