Adhesive Handle Application

Adhesive handle application is Decimo Srl's flagship capability. We offer three models of handle applicator machines to meet every need: the XHP Pneumatic Handle Applicator, the XHM Mechanical Handle Applicator, and the XHE Electronic Handle Applicator. Each model offers specific advantages in terms of performance, precision, speed, and adaptability to different types of packaging. Discover in the following sections which machine is the ideal solution for your needs.

Raw Materials for Handle Applicators

Our handle applicators are designed to work with high-quality materials, ensuring efficiency and impeccable results. This section illustrates the specifications of adhesive tape reels and cardboard, essential components for creating handles. Discover the characteristics of standard materials and contact us for custom solutions.

Standard spooled adhesive tape reel, dimensions and technical specifications for XH handle applicators and XHF handle feeders

Standard Spooled Reel

Adhesive Tape

The spooled reel is the most common configuration for adhesive tape used in our XH handle applicators (with integrated feeder unit) and XHF external handle feeders.

  • Core Diameter: 6" (152 mm)
  • Outer Diameter: ~350 mm
  • Width: 180 mm
  • Material: MOPP
  • Total Thickness: 70 µm
  • Tape Thickness: 50 µm
  • Adhesion: 5 N/25 mm
  • Breaking Load: 350 N/25 mm
  • Elongation: 30%

Consult the supplier's technical data sheet for complete details.

Flat adhesive tape reel, dimensions and technical specifications

Flat Reel

Adhesive Tape

Flat reels, with a 3" (76 mm) core, are an alternative for applications that require less autonomy or for use with specific models of unwinders.

  • Core Diameter: 3" (76 mm)
  • Outer Diameter: ~350 mm
  • Width: 180mm
  • Support: MOPP
  • Spessore: 70 µm (total), 50 µm (tape)
  • Adhesion: 5 N/25 mm
  • Breaking Load: 350 N/25 mm
  • Elongation: 30%

Consult the supplier's technical data sheet for complete details.

Spooled reel of adhesive tape with pre-applied cardboard, specifications for XH handle applicators and XHF feeders

Pre-labeled Reel

Adhesive Tape with Cardboard

This spooled reel integrates pre-printed cardboard, offering an "all-in-one" solution with high autonomy. Ideal for high production runs with dedicated graphics.

  • Core Diameter: 6" (152 mm)
  • Outer Diameter: ~350 mm
  • Width: ~350 mm
  • Support: MOPP
  • Spessore: 70 µm (total), 50 µm (tape)
  • Adhesion: 5 N/25 mm
  • Breaking Load: 350 N/25 mm
  • Elongation: 30%

Consult the supplier's technical data sheet for complete details.

Custom cardboard for adhesive handles with logo, QR code and barcode, technical specifications

Custom Cardboard

For Adhesive Handles

The cardboard, in addition to facilitating the grip, offers space for customization with logos, codes and information.

  • Grammage: 210 g/m²
  • Thickness: 252 µm
  • Bending Stiffness (Taber 15°): MD 5 mHm, CD 2 mHm
  • Humidity: 3-8%
  • Brightness (Top Side): 85%
  • Parker Smoothness (Top Side): 2.5 µm
  • Scott Bond: 50 J/m²

Consult the supplier's technical data sheet for complete details.

Dimensional tolerance specifications (±0.5 mm) for cardboard used in handle applicators and feeders

Cardboard Tolerances

Essential Precision

Dimensional precision of cardboard is essential for proper machine operation.

  • Length (l): ±0.5 mm
  • Width (w): ±0.5 mm

Strict tolerances ensure impeccable feeding and application.

Consult the supplier's technical data sheet for complete details.

Stack of cardboard for adhesive handles, importance of packaging and storage in a dry environment

Packaging and Storage

Cardboard

To preserve the integrity of the cardboard and ensure maximum efficiency, follow these guidelines.

  • Supplied in protective trays.
  • Bundles with plastic or paper bands.
  • Tray wrapped in heat-shrink film.
  • Storage in a dry environment.

Proper storage prevents sticking and ensures optimal performance.

Consult the supplier's technical data sheet for complete details.

Applications

With over 30 years of experience, we have acquired specific know-how in various application sectors, for which we create dedicated machines for specific use.

Bottling

Handle Applicators for Bundles: Solutions for Even and Odd Fronts, from 0.25L to 2L and beyond.

Our handle applicator machines apply adhesive handles to bundles of bottles of all types. We manage without problems the most common formats (3x2, 4x2, 4x3, 6x4...) and standard bottle sizes (0.25L, 0.5L, 0.75L, 1L, 1.25L, 1.5L, 2L...). But we don't stop there: if you have special needs, our team is ready to design the perfect tailor-made solution with you.

Below are some visual examples illustrating the versatility of our handle applicator machines in different bundle configurations, both even and odd fronts:

  • Bundle of bottles Odd Front (3x, 5x) with Pronounced Handle Arch \(a\)
  • Bundle of bottles Odd Front (3x, 5x) with Normal Handle Arch \(a\)
  • Bundle of bottles Even Front (2x, 4x) with Pronounced Handle Arch \(a\)

Even Front bundles (2x, 4x, 6x, etc.), in which the number of bottles is even in the direction of advancement, present a specific challenge. In these cases, the useful section \(u\) of the adhesive handle must be positioned precisely in the neck between the bottles. Furthermore, a pronounced handle arch \(a\) is essential. Without it, the handle would adhere to the film, preventing grip. Conversely, in bundles with an Odd Front (3x, 5x, etc.), the handle rests on the central caps, naturally creating the necessary space.

The XHM Mechanical Handle Applicator is the optimized solution for applying handles to even-front bundles. Thanks to its advanced technology, it ensures precise control of the handle arch \(a\) and the useful section \(u\), while maintaining high productivity. The gripper, with its specific design, adapts to the neck of the heat-shrink film between the bottles, ensuring impeccable application without cuts or damage.

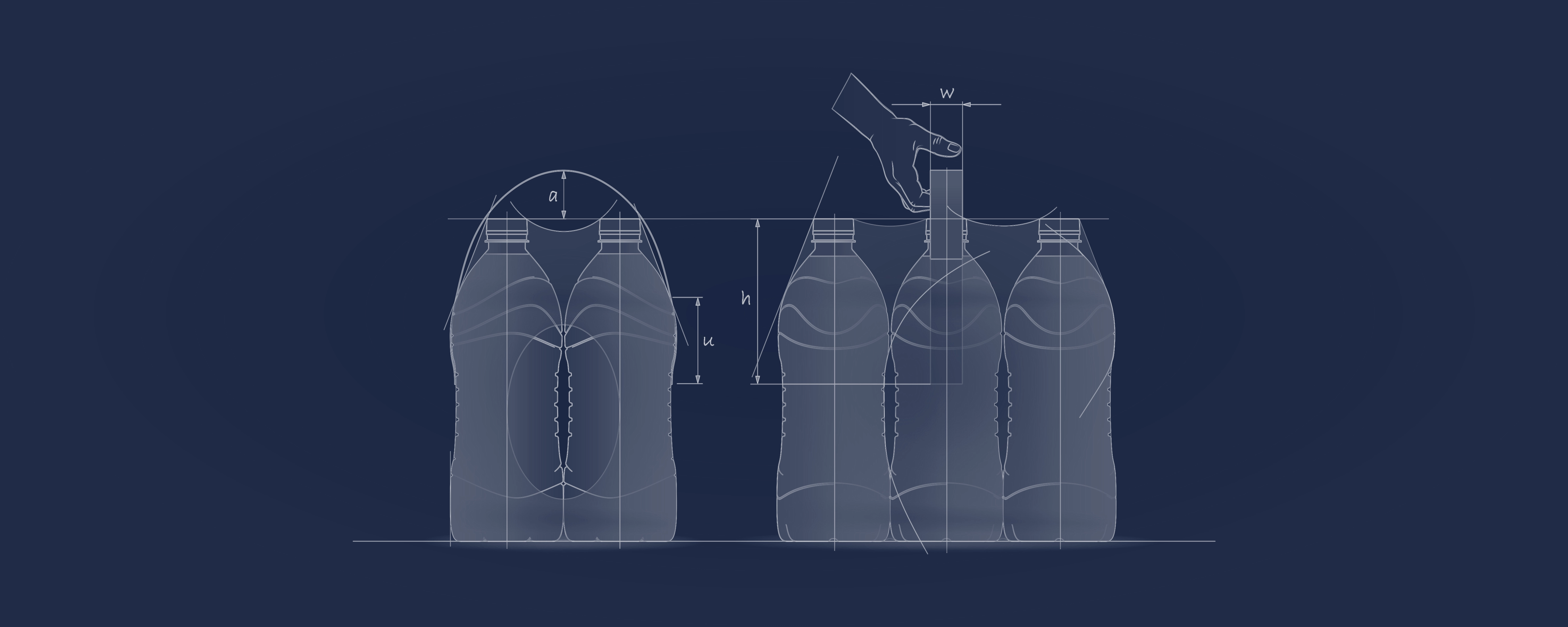

Technical drawing of a 3x2 bundle with adhesive handle with minimum arch for handle applicator machines
Odd front bundle with pronounced handle arch for easy grip.
Technical drawing of a 3x2 bundle with adhesive handle with minimum arch for handle applicator machines
Odd front bundle with normal handle arch: sufficient space to insert hand.
Technical drawing for adhesive handle application with large arch on 2x2 bundle - Handle applicator machines
Even front bundle: the pronounced handle arch is essential for a secure grip.

Bottling

Handle Application on Can Bundles: Precision and Versatility

Decimo Srl handle applicator machines apply adhesive handles to can bundles efficiently and precisely, adapting to every need. We offer solutions for both "top" (top grip) and "side" (side grip) applications. We handle the most common formats (2x2, 3x2, 4x2, 4x3, 6x4...) and cans of different sizes (0.33L, 0.5L, 0.66L and beyond). And if you need something unique, our team is ready to design the perfect tailor-made solution with you.

These images demonstrate how our machines apply adhesive handles to can bundles of all types, seamlessly managing both even/odd front configurations and top or side gripping:

  • Can bundle Odd Front (3x, 5x...) with Side Handle and Pronounced Handle Arch \(a\)
  • Can bundle Even Front (2x, 4x...) with Top Handle and Pronounced Handle Arch \(a\)
  • Can bundle Odd Front (3x, 5x...) with Top Handle and Pronounced Handle Arch \(a\)

Applying handles to even-front can bundles (2x, 4x, 6x...) requires maximum precision. The useful section \(u\) of the handle must fit perfectly into the neck between the cans, and a well-defined handle arch \(a\) is essential to prevent the handle from adhering to the film, making gripping impossible. As cans are particularly delicate, the gripper on our machines is made with special materials and coatings to prevent scratches and dents. For these bundles, we offer both side and top application.

The XHM Mechanical Handle Applicator is the ideal Decimo Srl solution: precise control of \(a\) and \(u\), high productivity and a gripper designed to adapt to the neck of the film without damaging the cans.

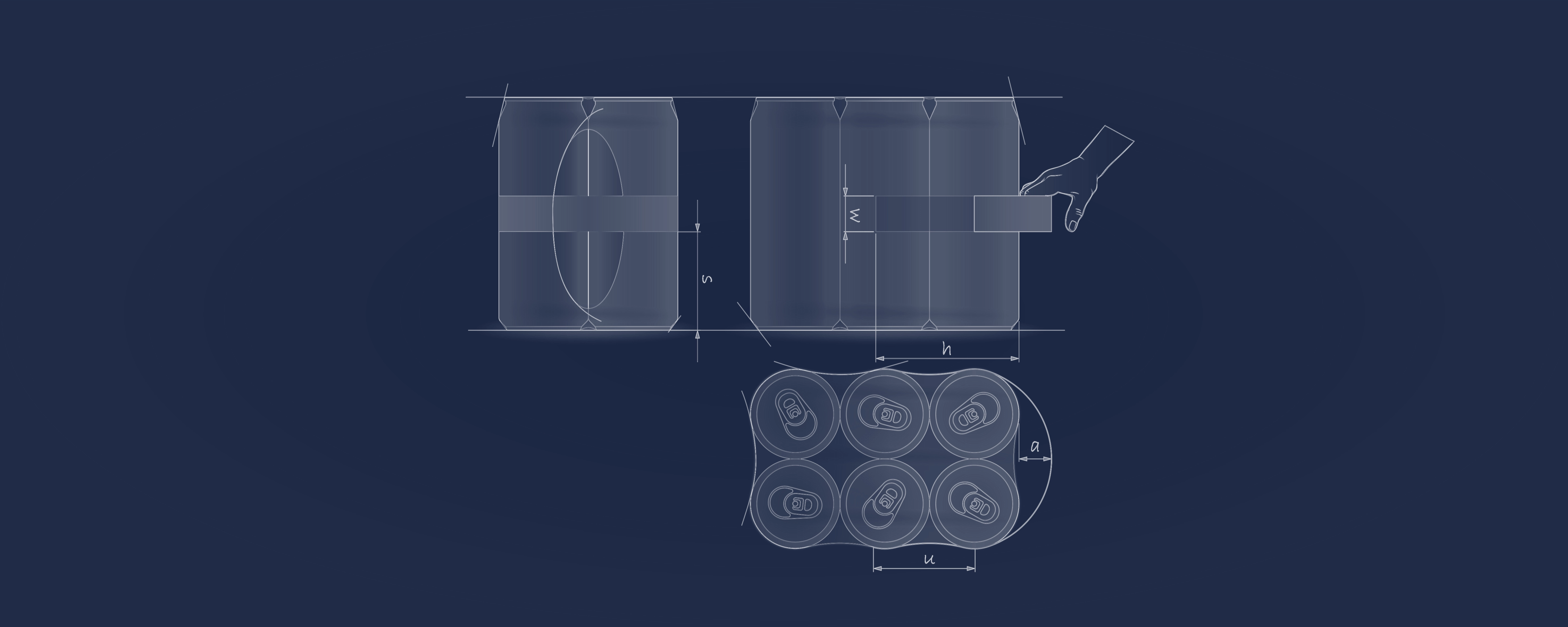

Technical drawing of a side adhesive handle application on a 3x2 can pack with dimension details for handle applicator machines
Top view of a can bundle: Decimo Srl machines take into account all dimensions (\(h\), \(u\), \(w\), \(a\), \(s\)) for optimal handle application.
Technical drawing of a top adhesive handle application on a 2x2 can pack - Details for handle applicator machines
Side view of a can bundle (2x2): note the useful section \(u\) of the handle, applied precisely in the neck between the cans.
Technical drawing of a top adhesive handle application on a 3x2 can pack with dimension details - Handle applicator machines
Odd front can bundle: classic handle application.

Bottling

Handle Application on Brick Packs: Solutions for Every Shape

Decimo Srl handle applicator machines apply adhesive handles to brick-type cardboard packs with maximum precision, adapting to every shape. Whether bricks with a flat top surface and protruding cap, inclined top surface with cap, or even with a tapered top end, our machines guarantee flawless application. Given the variety of shapes, the handle arch (\(a\)) is always essential on these products. Variables \(h\), \(u\), \(w\) and \(a\) play a crucial role for optimal results.

These images show the application of adhesive handles on brick packs, highlighting the key dimensions and the importance of the handle arch:

  • Handle applied to 3x2 brick bundle with orthogonal top surface and cap: the arch \(a\) ensures a secure grip on this traditional configuration.
  • Handle on 3x2 brick bundle with inclined top surface and cap: the application adapts to the shape, keeping the arch \(a\) essential for functionality.
  • Handle for 3x2 brick bundle with tapered top section: design and functionality come together, with the arch \(a\) ensuring an ergonomic grip.

Applying handles to brick bundles requires precise control of variables \(h\), \(u\), \(w\) and \(a\). The greatest critical issue, compared to other packaging, is the necessary presence of the handle arch (\(a\)), regardless of the geometry of the brick's top surface (orthogonal, inclined or tapered). The XHP Mechanical Handle Applicator from Decimo Srl is designed for this:

  • Correct determination of \(h\) and \(u\) based on brick height.
  • Formation of an optimal handle arch \(a\).
  • Precise and repeatable application even at high speeds.

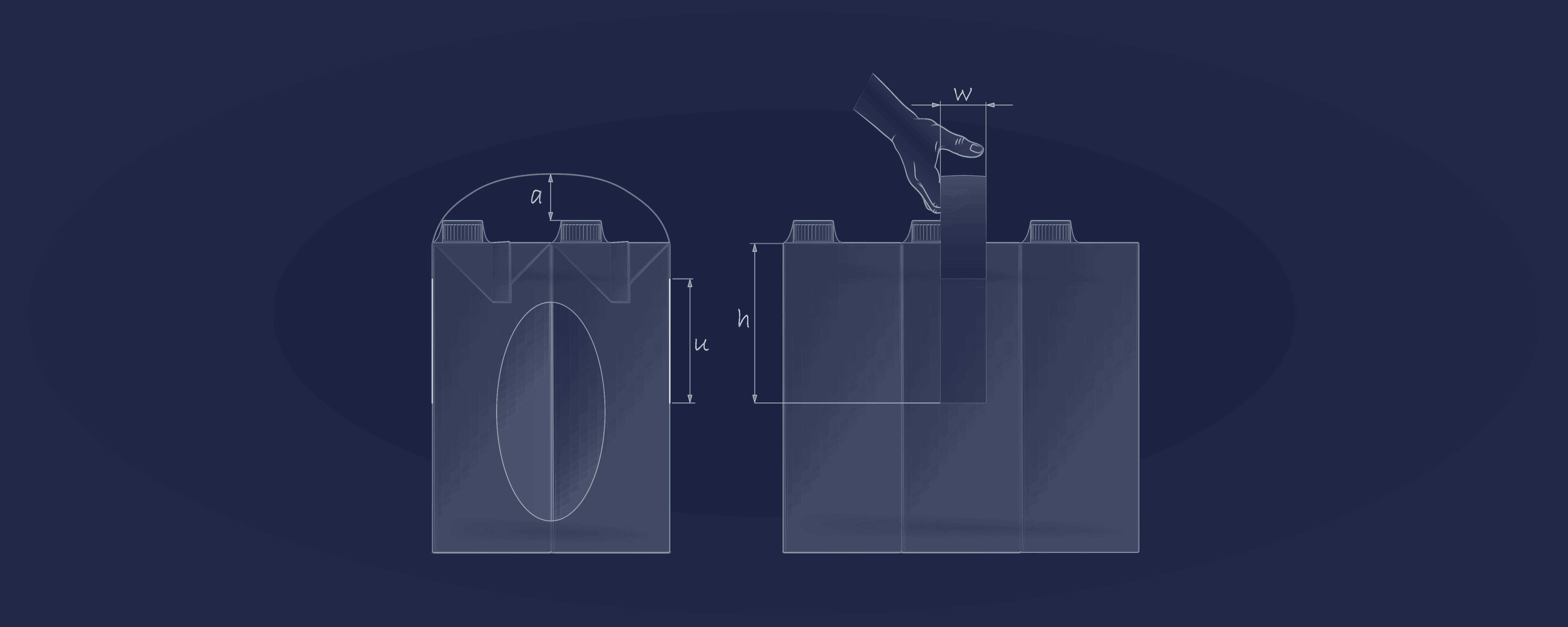

Technical drawing of a top handle application with arch on a 3x2 brick pack with caps - Dimensions for handle applicator machines
Brick bundle (3x2) with orthogonal top surface and handle arch.
Handle application diagram with arch on a 3x2 brick pack with inclined surface - Dimensions for handle applicator machines
Brick bundle (3x2) with sloping top surface and handle arch.
Technical drawing for top adhesive handle application with arch on a 3x2 tapered brick pack - Dimensions for handle applicator machines
Brick bundle (3x2) with tapered top surface and handle arch.

Tissue

Handle Application on Paper Rolls: Complete Guide

Decimo Srl handle applicator machines offer versatile solutions for applying adhesive handles to paper rolls, both single (toilet paper, kitchen towels) and in multipacks. Application can be from above (typical of single rolls) or laterally (common for multipacks).

Critical Factors for Optimal Application:

  • Handle Arch \(a\) and Useful Height \(u\): Even if smaller than other applications (e.g., brick bundles), proper dimensioning of the handle arch \(a\) and height \(u\) is essential to ensure a safe and ergonomic grip.
  • Pack Consistency: A compact pack, obtained with high-quality film and optimal draw, is essential for precise and consistent application.
  • Handle Material: Generally, the handle consists of adhesive tape coupled with a thin plastic insert. Decimo Srl also offers Handle Feeders (XHF) for creating custom handles, combining adhesive tape and plastic insert from two separate reels.

Application Examples:

  • Single Roll (Top Application): Ideal for toilet paper and kitchen towels, top application offers an intuitive grip.
  • 12-Roll Pack (3x4x1, Side Application): The side handle facilitates transport of multipacks.
  • 24-Roll Pack (3x4x2,Side Application): Particularly delicate, requiring precision application in the "neck" between the rolls.

The XHE Electronic Handle Applicator with horizontal head from Decimo Srl is particularly suitable for these applications. Servo-motor control allows for:

  • Maximum flexibility in handling different formats.
  • Custom application trajectories to avoid damage to the pack.
Technical drawing for top adhesive handle application on single paper roll, with dimensions for handle applicator machines
Single roll with top handle application.
Technical drawing of a side adhesive handle application on 12 rolls toilet paper pack - Dimensions for handle applicator machines
12-roll pack, side application.
Technical drawing of a side adhesive handle application, 24 paper rolls toilet paper pack - Dimensions for handle applicators
24-roll pack, side application.

Bottling

Handle Application on Carboys: Precision and Stability

Decimo Srl handle applicator machines offer efficient solutions for applying adhesive handles to carboys, both single and in multipacks. Correct application is essential to ensure a secure grip and prevent tipping during transport.

Key Aspects of Application:

  • Cleaning and Drying: Given the absence of heat-shrink film, the carboys must be perfectly clean and dry for optimal adhesion of the adhesive tape.
  • Smooth Surface: A smooth surface promotes adhesion of the adhesive tape.
  • Handle Arch: Essential for a secure and comfortable grip.

Application Configurations:

  • Single Carboys (Inclined Handle): Handle inclination is designed to prevent tipping during lifting.
  • 1x2 Packs (Long Side Handle): The handle rests on the caps, facilitating the formation of the handle arch.
  • 2x1 Packs (Short Side Handle): Application in the neck between the carboys requires precision to ensure pack stability and compliance with palletization height (quota \(p\)).

For more complex applications (such as the 2x1 format), Decimo Srl has developed specific solutions that allow for precise, repeatable and uncompromising application.

Contact us to learn more!

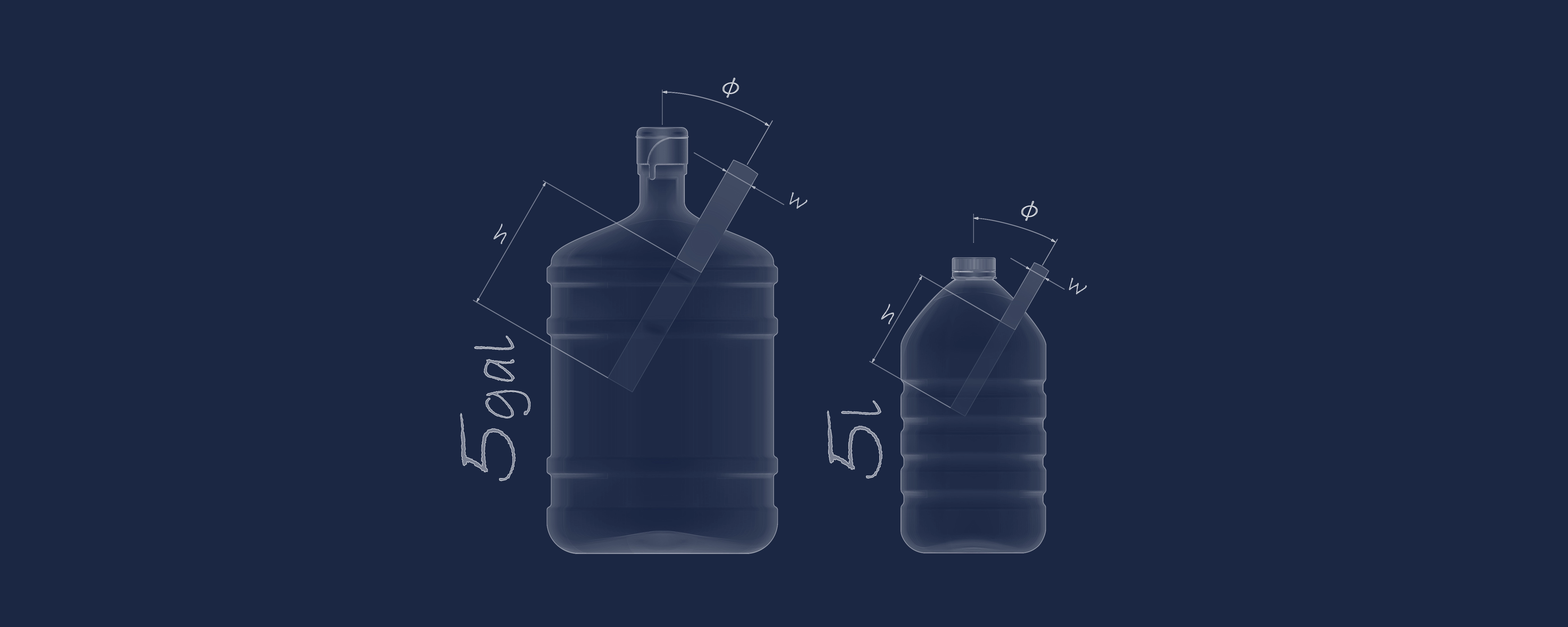

Technical drawing: inclined adhesive handle application on 5-gallon and 5-liter water carboys
Inclined Handle on Carboys.
Technical drawing: adhesive handle application on long side of 1x2 carboy water pack
Handle on long side - 1x2 Pack.
Technical drawing: adhesive handle application on short side of 2x1 5-liter carboy water pack
Handle on short side - 2x1 Pack.

Paper Industry:

Adhesive Handles on Cardboard Boxes: A Challenge, Many Solutions

Applying adhesive handles to cardboard boxes is an increasingly requested solution, but presents unique challenges. Adhesion to cardboard, tear resistance during transport (especially with heavy loads), and application speed require particular attention.

Our Expertise:

  • Optimized Adhesion: Solutions to ensure strong and lasting adhesion, even on different types of cardboard.
  • Tear Resistance: Careful application design to minimize the risk of tearing during transport.
  • High Speed: Technologies to ensure solid applications even at high speeds.
  • Delicate Application: Application systems designed to minimize stress on the cardboard and ensure pack stability.

Application Types:

  • Top: Handle applied to the top of the box.
  • Side (Long Side): Handle applied to the long side of the box.
  • Side (Short Side): Handle applied to the short side of the box.

Discover how we tackle these challenges! Watch the video of one of our latest installations.

Technical drawing: top adhesive handle application on horizontal cardboard box
Top Handle (Top).
Technical drawing: horizontal adhesive handle application on cardboard box (top view)
Side Handle (Long Side).
Technical drawing: horizontal adhesive handle application on short side of cardboard box (top view)
Side Handle (Short Side).

Flexible Packaging

Handles on Bags: Custom Solutions for Easy Transport

Applying handles to bags containing loose material is a niche application with interesting growth potential. This solution requires dedicated analysis to adapt to different product sizes and types.

Flexibility and Customization:

  • Customized Analysis: Accurate assessment of product and bag specifications to ensure optimal application.
  • Intermittent Application: Suitable for low production speeds, ideal for small batches or special products.
  • Application Versatility: Possibility to apply the handle on either the side or top of the bag.

Innovative Applications:

  • Multipacks for Light Bags: In the case of small bags (e.g. moistened wipes), the handle can join two or three packs, creating a multipack that facilitates transport and increases product value.

If you have a specific project, contact us! We are ready to collaborate to develop a custom solution that meets your needs.

Technical drawing: top adhesive handle application for transport and joining of stacked bags of loose material
Top handle for stacked bags.
Technical drawing: adhesive handle application on short side of loose material bag
Side handle (short side).
Technical drawing: adhesive handle application on long side of loose material bag
Side handle (long side).

Bottling

Rigid Handles for Carboys: Robustness and Ergonomics

Offer a superior transport experience with the application of rigid handles (neck handles) on your water carboys. A robust and ergonomic solution that makes the difference.

Key Benefits:

  • Secure and Comfortable Grip: Ideal for heavy carboys, where an adhesive handle may not be sufficient.
  • Ergonomic Design: Facilitates lifting and transport of the carboy, reducing strain for the end user.
  • Added Value: Gives your product an image of quality and attention to detail, setting it apart from competitors.
  • Long-Lasting Durability: Rigid handles are designed to withstand repeated use and maintain their functionality over time.

Our Application System Guarantees:

  • Precision and Reliability: Even at high speeds, application is accurate and repeatable, minimizing rejects.
  • Adaptability: Ability to handle different carboy formats and rigid handle types.
  • Product Integrity: The application process is gentle and designed not to damage the carboys.

Contact us to discover how to enhance your carboys with our rigid handle application solutions!

Water carboy with rigid handle applied to the neck
Carboy with rigid handle (neck handle).

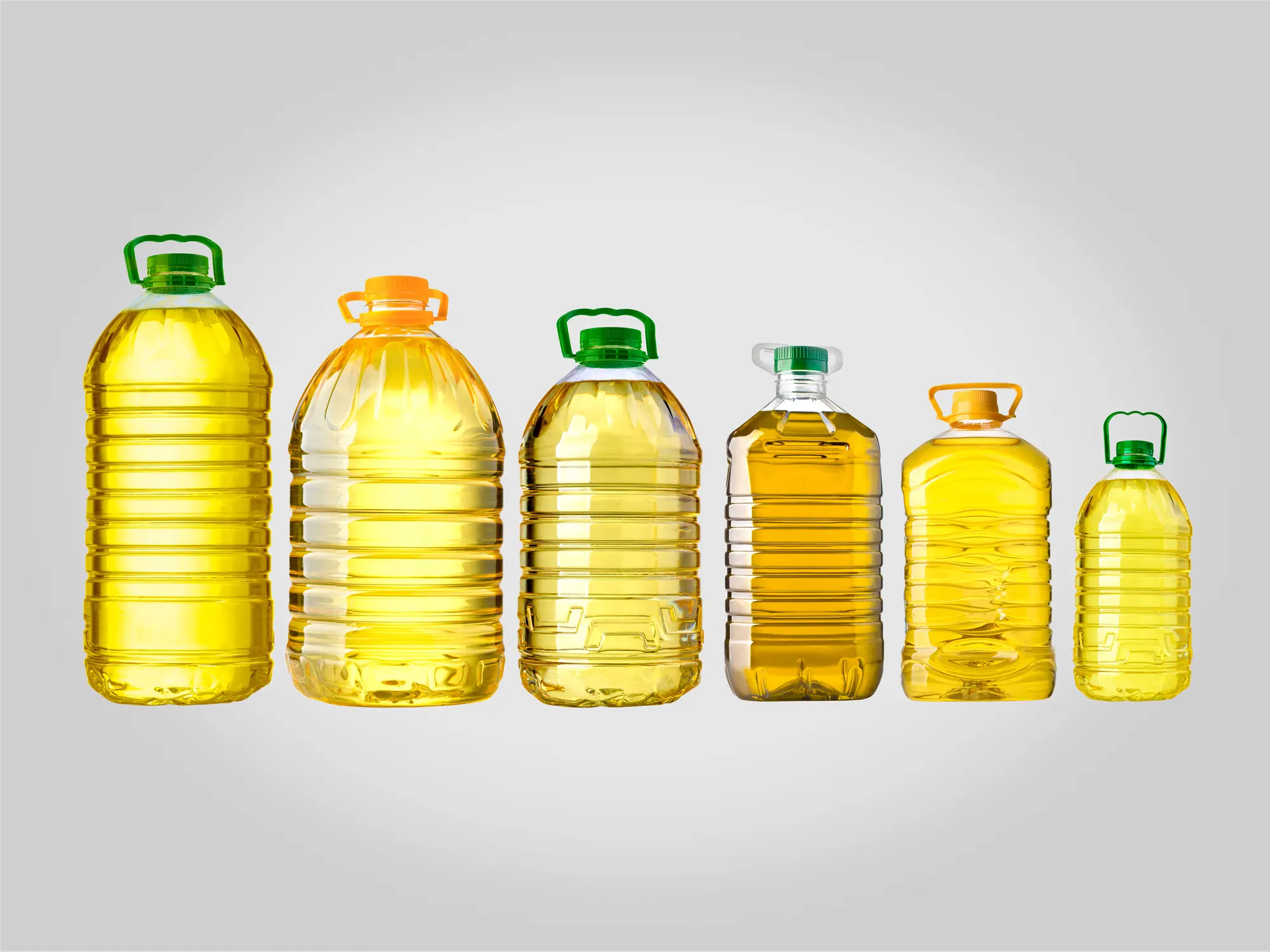

Oil carboys of different sizes with rigid handles (neck handles), applied with linear XHN machines
Carboy with rigid handle (neck handle).

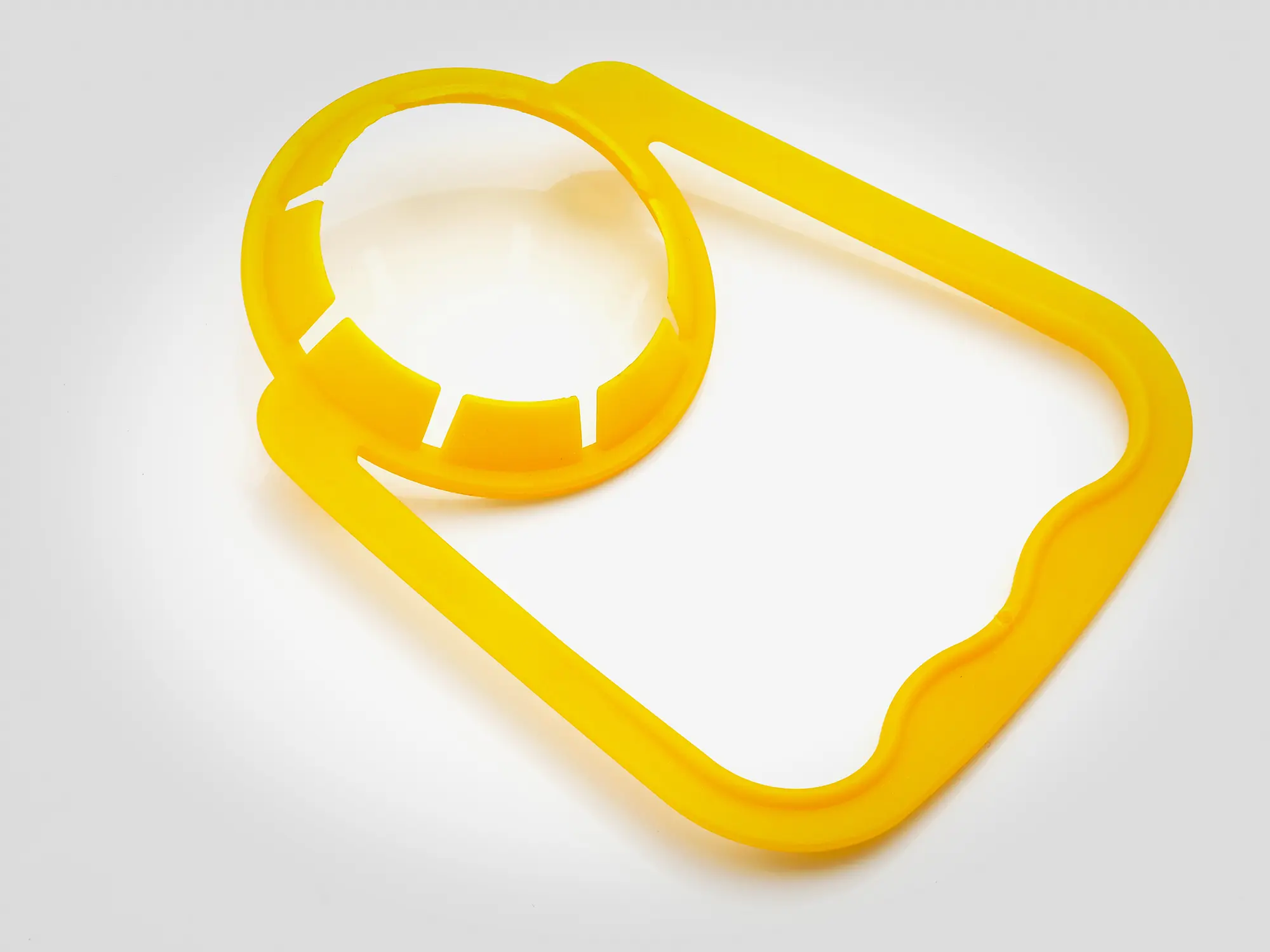

Yellow rigid handle neck handle, example of handle applicable with XHN machines
Carboy with rigid handle (neck handle).
